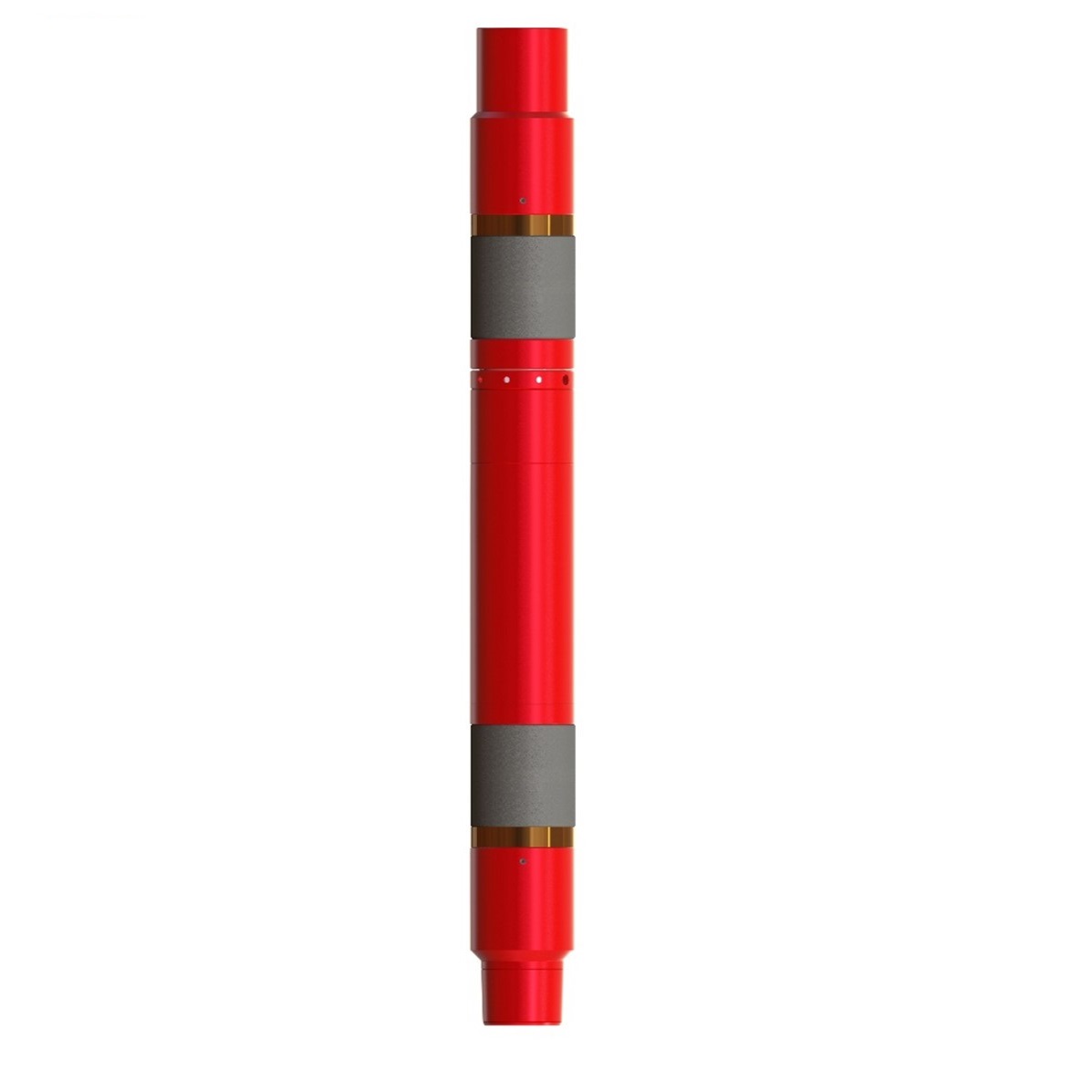

Open Hole Packer
The Open Hole Packer is designed to be run in multiple quantities, as an integral part of the tubing string for isolation in multi-zone completions. The Open Hole Packer is precision-engineered with an advanced mechanical compression element matrix, purposefully optimized for aggressive multi-zone completion and localized fracturing operations across openhole environments. Built to endure harsh unlined wellbore formations, it is structurally configured to be run in multiple quantities as an inte
It can be run in either open or cased hole completions, is suitable for vertical, high angle and horizontal wells. It is a non-anchoring device and is set hydraulically by applying the required differential pressure across a plug set below it. When set, it features an internal interlocking mechanism providing a positive long-term set.
Features
- All components are locked securely in place to prevent premature setting during running in hole, especially while using in the open hole.
- Set by hydraulic pressure from surface against a plug device located below the packer.
- Field adjustable setting pressure.
- Packing elements are set by a single acting setting piston.
- Rated at 10,000 psi working pressure.
- Can be supplied with premium elastomers, and materials
- for sour service applications.
- Large ID is compatible with the casing on which it is run.
|
Casing/Open-hole Size |
Tool OD |
Tool ID |
Connection |
Pressure Rating |
Temperature |
|
5 1/2” X 4.625” |
4.346” |
2.812” |
3 ½” EUE |
10,000 Psi |
300ºF |
|
7” X 6.0” |
5. 750” |
4.000” |
4 ½” LTC |
10,000 Psi |
300ºF |
|
9 5/8” X 8.5” |
8..000” |
4.750” |
5 ½” LTC |
10,000 Psi |
300ºF |
